Individual study, June-July 2016

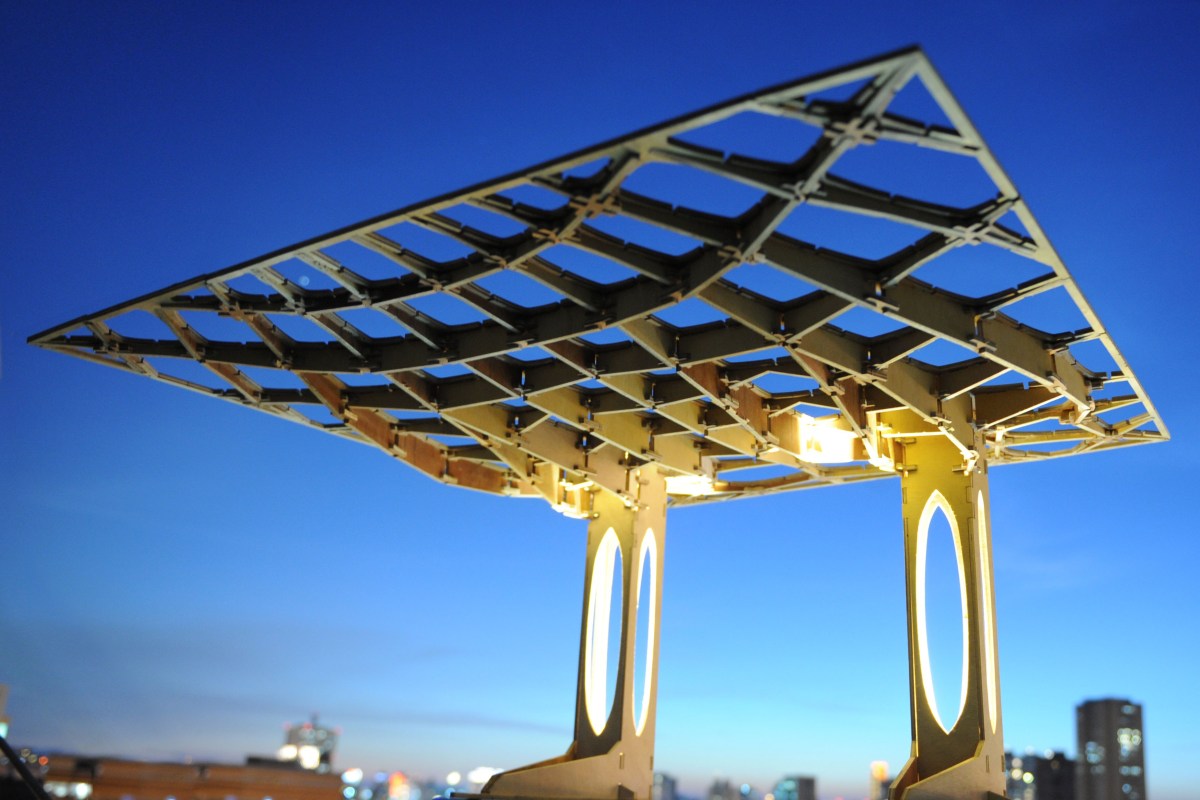

The pattern of the roof is derived by dismissing unneeded material among a plate. I adopted a numerical technique called “Method of Fundamental Solutions” to analyze the stress field of the square plate before channelized the stresses into a strut-and-tie system. Finally, the network of the girders and the beams explicitly expresses the stresses of the structure.
